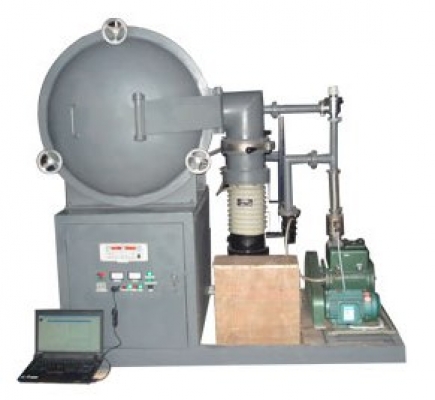

Model

XY-1600VF

Furnace construction

• XY-1700 type high purity ceramic fibre insulation;
• Cylinder vacuum vessel to resist barometric pressure
• Perfect sealing furnace door and easy open

Chamber Size

100x100x100mm; 120x120x130mm; 150x150x150mm; 150x150x200mm; 200x200x200mm; 200x200x300mm; 300x300x300mm; 300x300x400mm

Power

1KW~12KW

Voltage

AC 220V 50/60 Hz \ 380 VAC 3 Phases

Max. Temperature

1600 °C  (< 2 hour)

Continuous work temp.

1500 °C

Max. Heating Rate

15 °C /min

Temperature controller

• PID automatic control and auto-tune function.
• 51 programmable segments for precise control.
• Built in protection for over-heated and broken Thermal couple.
• Larger digital control panel (48 x 96 mm) for easy operation.

Temperature Accuracy

+/- 1 °C

Vacuum system

Double rotary pump + Diffusion pump + multi-vacuum gauge + high vacuum valves + bellows

Max. vacuum

7 Pa

Heating Element

MoSi2 heating element

Thermal Couple

B type

Outer Dimension

Dia 300 to  1200mm

Gross weight with package

600Kgs~2000kgs

Software to control furnace through computer
(if you need, additional order)

Communication module installed in temperature controller

Software –TCS(Temperature Control System, available for Win2003, Win XP)

One USB cable, one RS485 Serial interface.

Warranty

24 months limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.)

Certificate

CE certified
