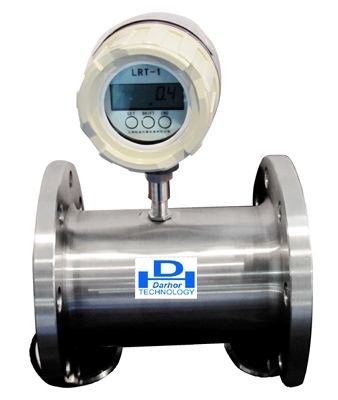

Turbine flowmeter

Model LWGY turbine flow transducer adapts to measure the liquid rate and total flowrate of low viscosity. It can be widely used in the fields of Petrol, Chemical industry, Metallurgy, Scientific research for measuring or control. Several output and display methods can be selected.

Feature :
Hi-Accuracy 0.2%, 0.5%, 1% optional
Wearable Tungsten carbonized shaft and bearing, be the same with the medium of sully
Erode-resistant Be the same with sea water, ammonia, acetometer, etc.
Bi-direction Measuring bi-direction flow (optional)
Multi-output Pulse, 420mA DC, total and rate display in the field
Power supply 524V DC
Explode-proof Ex dBT4
Spectrum 2*,4*,6,10,15,25,40,50,80,100,150,200,250,300mm

Specification :
