SP0702.01 : Cảm biến mức siêu âm - Rosemount 3100 Series
Thông số chính :
Cảm biến đo mức - Đồng hồ đo mức - Level sensor - Level Indicator :
Cảm biến mức siêu âm - Rosemount 3100 Series

Measurement Principle : Ultrasonic, time-of-flight
Measuring Range : 26 ft (8 m) for Rosemount 3101, 36 ft (11 m) for Rosemount 3102 and 3105
Output : 4-20mA for 3101, 4-20mA with superimposed digital HART® communication for 3102 and 3105
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : ROSEMOUNT
Model : Rosemount 3100 Series - Ultrasonic 3101/3102/3105 Level Transmitters
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Rosemount 3100 Series - Ultrasonic 3101/3102/3105 Level Transmitters

The Rosemount 3100 Series Ultrasonic Level Transmitter is the reliable and cost-effective, non-contacting measurement solution from Emerson. Time proven ultrasonic technology with advanced software and state-of-the-art electronics delivers high reliability in a wide variety of applications.

The 3101 is the entry level model for simple level measurement. Choose the 3102 for local control functionality with 2 integral signal relays. For hazardous area applications, the 3105 is certified intrinsically safe.

  • Continuous non-contacting measurement with no moving parts

  • Standard Integral LCD and push buttons for simple setup and on-site programming

  • 2 Integral signal relays for local control for (3102 only)

  • Aluminum housing and corrosion resistant PVDF wetted material

  • Volume or open channel flow calculations with pre-programmed library

  • Easy plant integration with 4-20mA ⁄ HART® output and PlantWeb support

  • Automatic temperature compensation with integral or optional remote temperature sensor

  • 2-wire dc loop-powered

  • Wide operating range to 36 ft. (11 m)



Features & Benefits

The Rosemount Series 3100 Ultrasonic Level Transmitter is a cost-effective measurement solution for a wide range of applications. It has no moving parts, corrosion resistant PVDF wetted material and a non-contacting measuring method. So, it requires almost no maintenance. It is unaffected by liquid dielectric constant, viscosity and density changes. Additionally the 3100 Series offers the following benefits:

  • Low cost of installation

  • Low cost of commissioning

  • Minimal maintenance costs

  • Process downtime minimized



  • The transmitters are available with threaded or flanged connections, making them easy to install. Several pre-programmed laws and strapping tables make configuration easy. Configuration can be performed by using the local operator interface or HART® configuration tools such as the 375 Field Communicator or AMS™Suite: Intelligent Device Manager.

  • The transmitters can be used with the Rosemount 3490 Series of wall and panel mounted control units, providing power and comprehensive control options. The transmitter is available with two integral relays, adding to the local control functionality.

  • The non-contact sensor is made from an inert material offering superior corrosion resistance and low maintenance requirements.

  • The integral or remote mounted temperature sensor enables automatic corrections where temperature changes in the tank free space could otherwise result in an inaccurate reading.

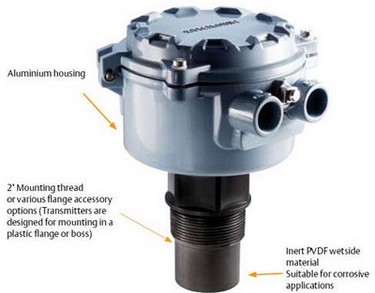

  • The local programming menu is easy to use. The 3100 may be installed using the 2 in. thread or available flange options either directly to the vessel or on a suitable bracket above the liquid surface. Three internal buttons are used to program the transmitter with the tank depth and the range for the 4-20mA output.



A built-in LCD display under the cover is provided to aid setting up.The user navigates through an intuitive menu, entering data as prompted by the transmitter. Intelligent software ensures only data specific to the chosen application is requested, minimizing programming time.



Specifications :

Measurement Principle

Ultrasonic, time-of-flight

Measuring Range

26 ft (8 m) for Rosemount 3101
36 ft (11 m) for Rosemount 3102 and 3105

Instrument Accuracy

Model 3101: ± 0.2 in. (5 mm) for <3.3 ft (1 m),
± 0.5% of measured distance for >3.3 ft (1 m)
Models 3102 and 3105: ± 0.1 in. (2.5 mm) <3.3 ft (1 m),
±0.25% of measured distance for >3.3 ft (1 m)

Level Resolution

Better than 1/16 in. (1 mm)

Blanking Distance

12 in. (0.3 m)

Output

4-20mA for 3101
4-20mA with superimposed digital HART® communication for 3102 and 3105

Temperature/Pressure Rating

Refer to the Product Data Sheet (PDF @ 400KB)

Hazardous Location Approvals (for 3105 only)

Intrinsic Safety (ATEX, CSA, IECEx, FM)

Display

Standard 4 ⁄ 5 digit display for configuration purposes.

Output Variables

Level, Distance for 3101
Level, Distance, Volume, Open Channel Flow for 3102 and 3105

Enclosure

Polyurethane-covered die-cast Aluminum housing.

Ingress Protection

NEMA 4X, IP66

Configuration Tools

AMS, 375 Field Communicator, Rosemount 3490 Series Universal Controller or any other DD- or EDDL-compatible host.



Applications :

Storage Tanks: Vertical Tank

Buffer Tanks: Horizontal Tanks

Open Air Applications

Open Channel flow
