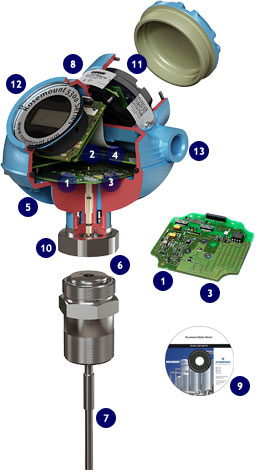

Direct Switch Technology

Probe End Projection

Smart Galvanic Interface

Advanced EchoLogics and Diagnostics Robust design resulting in reduced operating costs and safety

Dual Compartment aluminum or stainless steel housing with integrated Cooling Fins

Interchangeable transmitter head without opening the tank and no matching between head and probes

No mechanical moving parts and no need for re-calibration
Easy commissioning resulting in reduced startup costs through
Multivariable, Level and Interface from the same transmitter

User-friendly configuration tool Rosemount Radar Master with Measure-and-Learn

Rotate housing in any direction

Easy to access terminals and loop-powered

Single assembly for quick installation

Existing tank openings and cabling may be used In addition, the 5300 has high application flexibility.

Combine Level And Interface Measurement
One 5300 transmitter will measure both the upper surface and the lower product interface in tanks with two products such as separators, settling tanks etc. This reduces the number of tank penetrations required. Use the 5300 with a single lead probe for reliable measurement of interface in crude oil and other liquids that create build-up.

Improved Performance in Liquified Gases
Being virtually maintenance-free and unaffected by turbulence and vapor, the Rosemount 5300 is perfect for liquid gas applications. The transmitter head can be serviced without breaching the tank atmosphere. Superior performance enables relible operation in LNG, NGL, LPG and anhydrous ammonia tanks.

Underground Benefits
Probes that are unaffected by high and narrow openings or nearby objects are available. This makes the 5300 the best choice for underground tanks, where the installation area is usually limited.

Minimize Risk In The Most Demanding Environments
The guided wave radar technology in the 5300 contains multiple layers of protection that enable reliable performance in high temperature and pressure tanks and bridles, on refinery distillation columns, and power feed-water tanks, etc. The measurement is not affected by density variations, low reflectivity media or the mechanical configuration of the bridle and the product inlet.

Solid Performance
Rosemount 5303 has a flexible single lead probe that measures solids with dielectric constants as low as 1.4. The measuring range is up to 160 ft (50 m), and the transmitter has robust EMI performance. Special probes for high physical weight loads are available. Solids applications with the 5300 include powders and granules, plastics such as PVC, cement, fly ash, corn etc.

Measure In Vessels With Turbulence, Vapor And Mechanical Structures

The Rosemount 5300 delivers uninterrupted level data where others fail. With Direct Switch Technology, the reflection back from the surface is two to five times stronger compared with other guided wave radars. The result is a superior ability to handle disturbing objects, probe coating, vapor and turbulence.

Accuracy in saturated steam applications

Saturated steam under high pressure slows down radar wave propagation giving an incorrect distance. This, together with varying pressure and/ or temperature is a challenge. The Rosemount 5300 with Dynamic Vapor Compensation (DVC) automatically compensates for this and maintains the level accuracy.

Level gauging in chambers

Guided Wave Radar is the ideal choice for measurements in chambers. It is unaffected by density changes, chamber configuration and has no moving parts which minimizes maintenance. This makes it an easy and reliable substitute for displacer technology.
