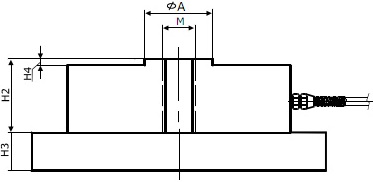

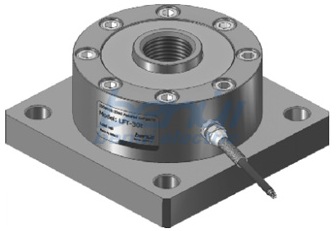

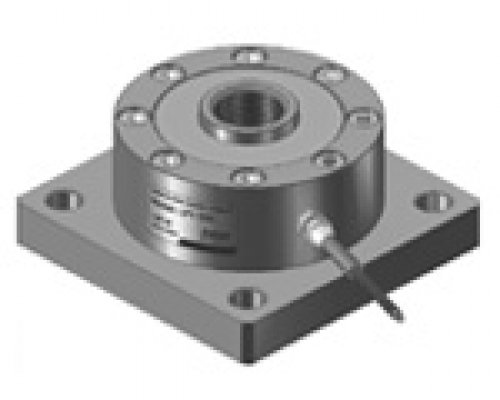

CAP./SIZE

ΦA

ΦD

M

H2

H3

H4

B1

B2

0.5,1,2,3t

29

11

16

34.8

18

3

138

112

5,10t

39

13

32x2

47.8

20

6.4

160

130

20,30t

50.4

18

39x3

57.2

25

6.4

170

133

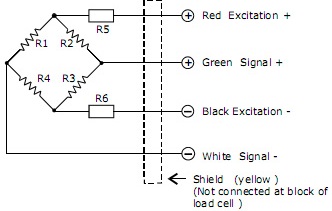

Item Parameter

C3

Unit

Rated load (Emax):

25,30,40,50,60

t

Maximal numbers of load cell verification Intervals (Nlc)

3000

d

Minimum load cell verification intervals Intervals ( Vmin

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

1550±5

Ω(Ohms)

Output resistance(Ro):

1402±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~24

V( DC or AC)

Maximum excitation:

48

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
