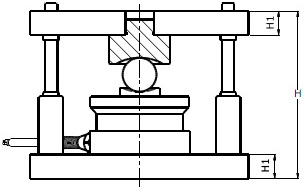

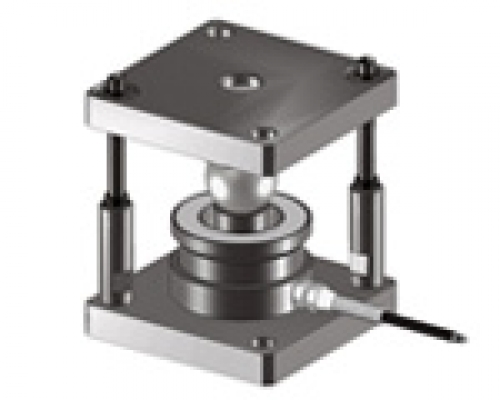

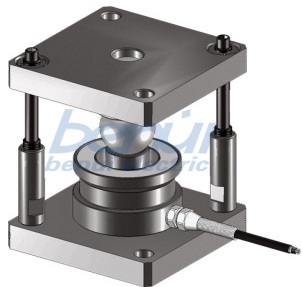

CAP./SIZE

A

B

H

H1

Φ

1~4.7t

94

120

114.4

18

13

10~22t

94

120

137.8

18

13

33t

105

130

181.1

22

18

47t

124

160

228.7

22

18

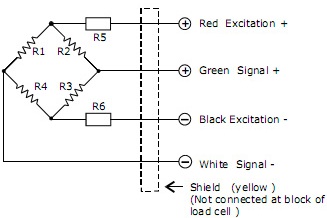

Item Parameter

C3

Unit

Rated load (Emax):

1,2.2,4.7,10,22,33,47

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

775±5/＞=33t：1550± 10

Ω(Ohms)

Output resistance(Ro):

702±2/＞=33t：1402± 2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~24

V( DC or AC)

Maximum excitation:

48

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
