SP0814.04 : ATC108A | Bộ chuyển đổi | KELI | ZEMIC
Thông số chính :

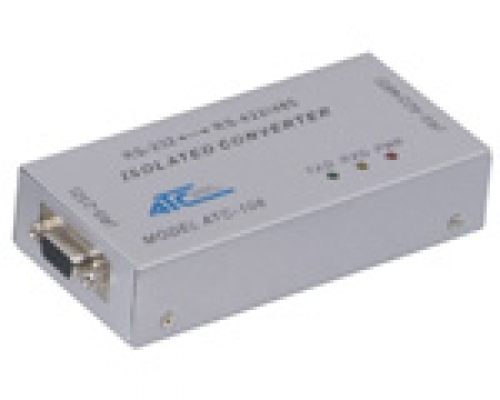

Bộ chuyển đổi | ATC108A analog load cell to PC converter | KELI | ZEMIC
Input of analog load cells:
1~3mV/V,300~2000 Ohms.Device power up
to 12 psc 350 Ohms load cells.
Output:standard RS232,
Can connect to PC direct.
Light insulation type
Non-linearity compensation And Filter treatment Exterior led show working order

CTCP GIẢI PHÁP CÔNG NGHIỆP chuyên Chế tạo thiết bị | Hệ thống pha trộn | Cân định lượng | Cân đóng bao | Hóa chất | Thực phẩm | Bột | .. | Hệ thống bơm định lượng | Đo lưu lượng các chất Dầu | Xăng | Cồn | Khí | Gas | Hơi | Nước | Hóa chất | Nhựa đường | Keo | Bột giấy | Xi măng | ... độ chính xác cao sử dụng hệ thống đo lường | điều khiển SIEMENS ( Đức ).
Hãng cung cấp : KELI | ZEMIC | BENUI
Model : ATC108A
Chất lượng : Bảo hành 18 tháng
 Catalog Video

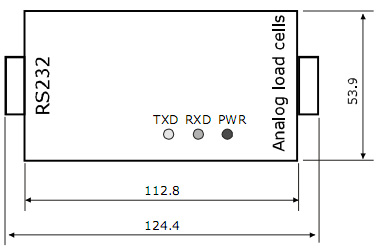

Dimensions

(In mm. 1 mm = 0.0 393 7 inches)

Work Principle

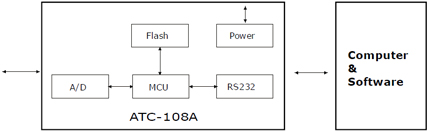

This is a based weighting solution,It can be used for either analog strtic weighing.No need the indicator,and it has a low cost.Usually,it connects the juncton box between the computer. The signal of some analog load cells wil be magnified after analog adding by the junction box, which will be dealed with by MCU after A/D conversion,then will output to PC by RS232 module. Please refer to following picture.



Note:

Multi-load cells should connect junction box then connect to ATC-108A.

Specification



Item Parameter

C2

C3

Unit

Rated load (Emax):

20kg~470t

kg,t,klb

Maximal numbers of load cell verification Intervals (Nlc):

2000

3000

d

Minimum load cell verification intervals Intervals ( Vmin):

0.02

0.01

% of rated load

Sensitivity(Cn ):

30,000 o r 100,000

mV/V

Combined error:

0.027

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0024

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.002

0.0008

-% of rated output

Res olution of A/D (fo r tes t lo ad):

24 (at 1 Hz)1.0

Bit

Res olution of A/D (fo r tes t temperature ):

8 (at 1 Hz)

Bit

Measu ring rate:

50/25

/Sec

Baudrate:

9600/19200

Bps

Filter mode 1:

3~0.05(Low pass filter)

HZ

Filter mode 0:

8~3(Low pas s filter)

HZ

Zero b alance:

1.0

+% of rated output

Ins ulation res istance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate o verload:

300

% of rated capability

Operating tem peratu re range:

-20~+70/-20~+160

/ °F

Rec ommend excitation:

7~ 12

V(Only DC)

Maxim um exc itation:

15

V(Only DC)

Material of ela sto mer:

A lloy ste el / Stainless stee l

Pro tec tion cla ss:

IP67/IP 68

Citation:

OIM L R60 / GB7551-1997
