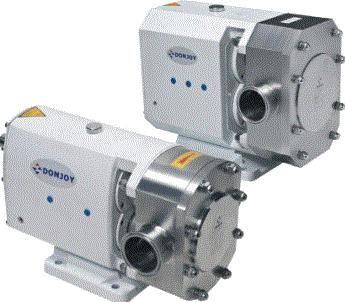

It is a positive displacement pump,designed according to 3A standard which requies very strict hygienic requirements to equipment and processes. The pump is ideal for the transfer of viscous as well as low-viscous media in the food processing, cosmetics and pharmaceutical industries.
The pump basically consists of two lobe rotors which rotate inside the casing without touching each other.As the rotors rotate, the space between the lobes and the casing is successively filled with the product which is driven to the discharge nozzle displacing a fixed amount of product.The pumped product forms a continous stream due to the adjusted tolerances of the lobes and the pump casing thus ensuring an efficient pumping.

Technical specifications: Max. Flow: 90m3/h / 395GPM          Max. Pressure:12bar / 174 PSI Max. Temperature:150℃/302℉ Max. rev: 1450 rpm Optional: Mechanical sealing material: SiC/SiC, TgC/SiC. Mechanical sealing with cooling system. Gasket material: FPM (Viton) and PTFE. With safety valve Vertical TUR series Horizontal TUL series

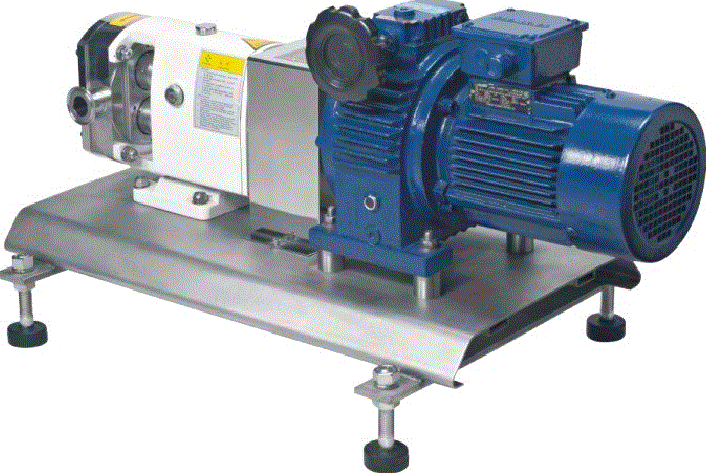

Various types of drives and fitting:
(1)Manual adjustable gearbox
(2)Frequency converter gearbox
(3)Fixed speed output reducer.
Connection way: Clamp(DIN32676,3A,ISO),Thread(DIN,SMS,RJT,IDF)
3.1 Mill certificate and roughness certificate.
Motor type B5,Frequency: 50HZ,60HZ
Voltage: (V)220-240,360-400,420-460,630-690

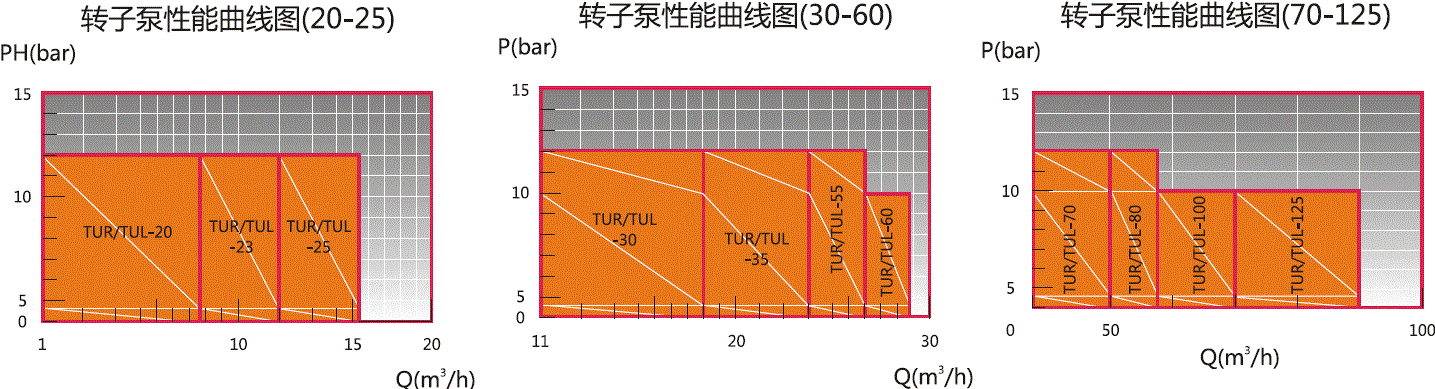

Performance Curve for  TUL/TUR series
