SP2003.02 : Bơm ly tâm - DONJOY
Thông số chính :
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ)
Hãng cung cấp : DONJOY
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

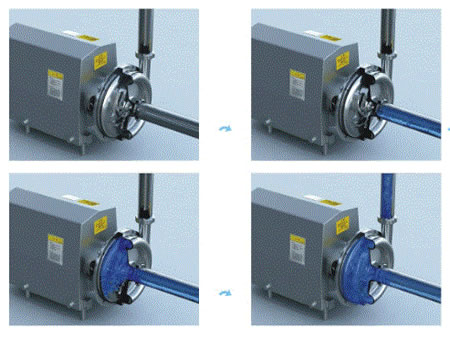

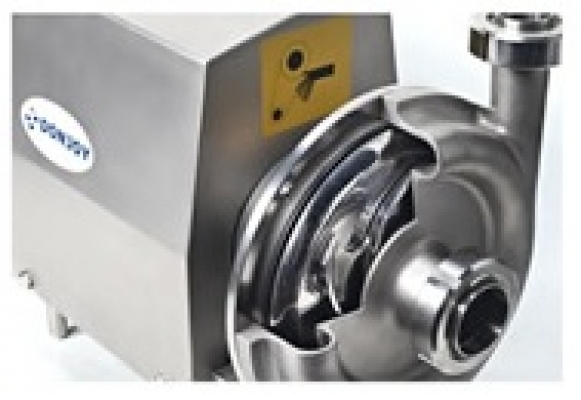

The pump is foraged and with stainless steel motor cover. With sanitary and cost-effective design, it is ideal for dairy, beverage, food processing, pharmaceutical and fine chemical industries. Operating Principles: Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.This pump is not reversible by simple reversal of the direction of rotation. The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Design and features
Casing manufactured with cold-formed plate. Open impeller
and close impeller manufactured with stainless steel investment
casting.
Adjustable stainless steel legs. Pump designed according
to 3A sanitary standards. IEC B34 motors, IP 55, F-class
insulation,50HZ 60hz
Mechanical seal in C/St. S and SiC/Sic
Gaskets in FPM (Viton) and PTFE
Connections: Clamp, thread, flange, DIN,SMS,RJT,IDF
Motor: 2900, 1450,3600 rev./min., 50HZ,60HZ
Parts in contact with pumped media: AISI 316L/AISI304
Other parts AISI 304
Gaskets: EPDM (FDA)(standard)
Mechanical seal:  SIC/SiC/EPDM(standard)
Inside surface finishing: Ra≤0.8 um
Outside surface finishing: Sandlast(standard) or Mirror polished
Technical specifications
Max. flow: 150 m3/h
Max. head: 70H(m)
Max. pressure: 7 bar/99 PSI
Max. temperature: 120oC
Max. rev.: 3600 min-1
