Thông số chính :
Van một chiều vô trùng - Sanitary Check Valve - DONJOY
Tư vấn , Thiết kế , Chế tạo dây chuyền – Thiết bị công nghệ , Hệ thống pha trộn - định lượng được tổng hợp từ các thiết bị công nghệ Bơm - Van - Cảm biến , Thiết bị điều khiển Allen – Bradley (Mỹ).
Model :
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Applications
ZH4 sanitary check valve is used in stainless steel pipe systems to prevent backward flow of fluids.

Operating Principle
When the pressure of lower valve stem exceeds that of upper valve stem and spring force, ZH4 sanitary check valve is open. When the pressure of upper valve stem equals that of lower valve stem, ZH4 sanitary check valve is closed. Greater reverse pressure acting on the valve stem causes the valve to close.

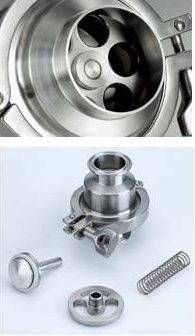

ZH4 sanitary check valve has two configurations.

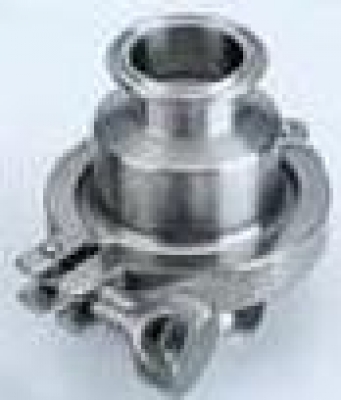

ZH4-1 sanitary check valve adopts clamp connection method. It is affordable and widely used in food industry.

ZH4-2 sanitary check valve consists of a thickened valve body and two flanges, which is easy to install and remove.

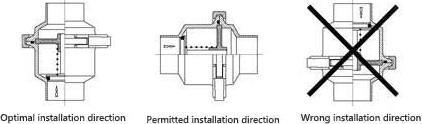

Correct Installation Method

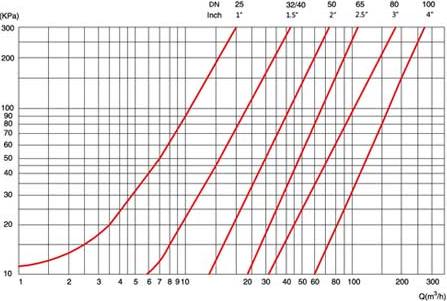

Pressure Drop/Capacity Comparison Diagram

Technical Data

Metal material

Product wetted

304L/316L (DIN-1.4307/1.4404) forged

Non-product wetted

304 (DIN-1.4301)

We can provide EN 10204 3.1B certificate.

Seal material

Standard

EPDM

Options

NBR, FPM, Silicone

All seal materials comply with FDA 177.2600.

Temperature

Continuous working temperature

-20°C ~ +135°C (EPDM)

Sterilization temperature

150°C (Max 20min)

Pressure

Opening pressure

0.08bar

Max working pressure

10bar

Surface treatment

Internal surface

Ra≤0.8µm

External surface

Ra≤1.6µm

Connection

Connection standards

Welding end: DIN 11850 series 2

Welding end: Inch pipe diameter standard

Connection methods: welding, thread, clamp, flange
