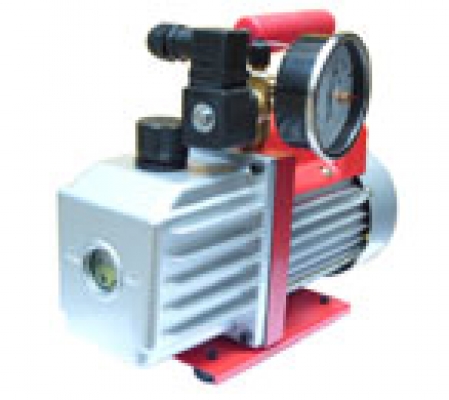

RS - 4 refrigeration special vacuum pump

Model		RS-4
Voltage		220V/50HZ	110V/60HZ
Bleed	CFM	8	9.5
Max.pressure	Pa	5
	Microns	75×10-2
	Mbar	0.05
Power	W	550
	HP	3/4
Rotating speed		1440	1720
Oil capacity<ml>		250
Dimension		387*147*263
Weight <kg>		18

RS-4 uses aluminum alloy as the outer cover. It is light and beautiful. When using this pump, the temperature of evacuating gas should be no higher than 40C and the environment temperature should be kept between 5C and 40C. When the gas is pumped, the diameter of the container''''s vacuum tube should be no smaller than that of the air inlet of the vacuum pump. There should be good air proof on the connector and valve of the tube, and strict cleaning in the tube. It is used for vacuum refrigeration, mechanical printing, automobile reparation, refrigeration recovery devices, photo-engraving, vacuum packaging and so on.
