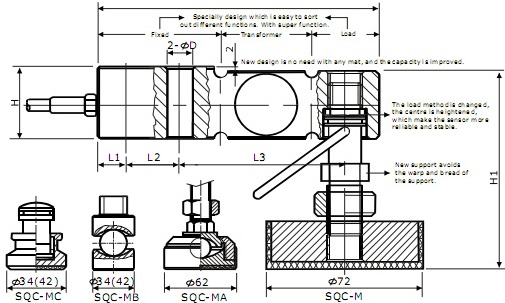

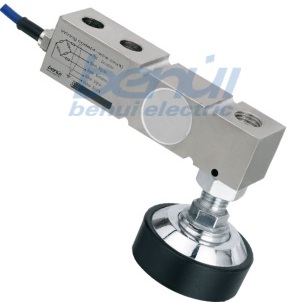

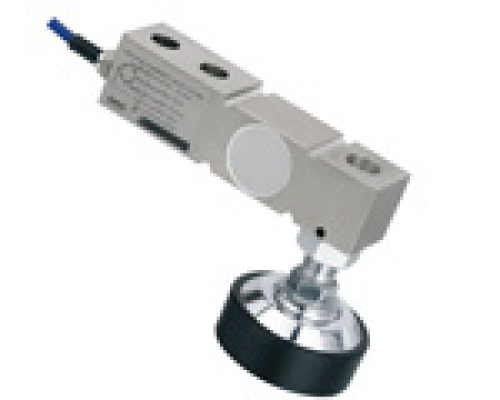

CAP./SIZE

L

L1

L2

L3

D

H

H1 SQC-M

H1 SQC-MA

H1 SQC-MB

H1 SQC-MC

0.1~3t

130

12.7

25.4

76.2

12.7

33.8

74~84

78~88

73.5

59

5t

171.5

19.1

38.1

95.3

20.5

41

82-92

86-96

85

80.8

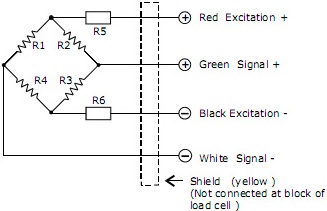

Item Parameter

C3

Unit

Rated load (Emax):

0.1,0.2,0.5,1,2,3,5

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals

( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

385±5

Ω(Ohms)

Output resistance(Ro):

351±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

18

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
