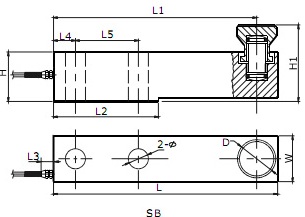

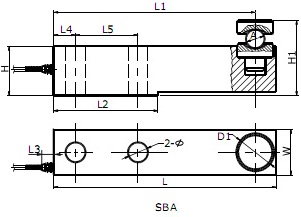

CAP./SIZE

L

L1

L2

L3

L4

L5

H

H1

Φ

D

D1

W

A

0.5,1,2,3t

203

181

95

24

19

64

43

57.9

13

35

39

37

15.9

5,8t

235

213

110

24

23

66

52

78.9

21

42

44

48

25.48

10t

279

247

133

24

25

82

67

127.7

28

57

58

60

38.1

20t

318

280

153

24

32

89

82.5

143.5

34

70

69

70

50.8

Item Parameter

C3

Unit

Rated load (Emax):

0.5,1,2,3,5,8,10,20

t

Maximal numbers of load cell verification Intervals (Nlc):

3000

d

Minimum load cell verification intervals Intervals ( Vmin):

0.01

% of rated load

Rated output (Cn):

2.0±0.1%

mV/V

Combined error:

0.015

-% of rated output

Temperature effect on sensitivity(Tkc):

0.0012

=% of rated output/

Temperature effect on zero balance(Tk0):

0.0008

-% of rated output

Zero balance:

1.0

-% of rated output

Input resistance(Rlc):

385±5

Ω(Ohms)

Output resistance(Ro):

351±2

Ω(Ohms)

Insulation resistance:

≥5000

MΩ (Mega-Ohms)

Safe overload:

150

% of rated capability

Ultimate overload:

300

% of rated capability

Operating temperature range:

-20~+70/-20~+160

℃/ °F

Recommend excitation:

8~15

V( DC or AC)

Maximum excitation:

18

V( DC or AC)

Material of elastomer:

Alloy steel / Stainless steel

Protection class:

IP67/IP68
