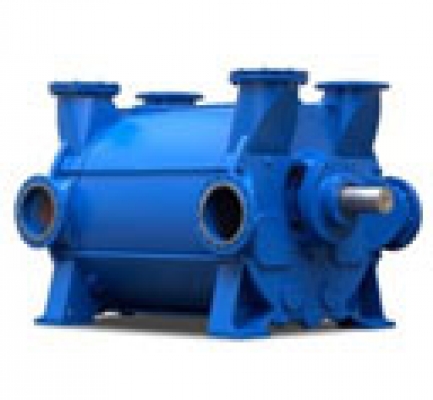

SP0301.02 : Bơm hút chân không - 2BE3 - EVP
Thông số chính :
Bơm hút chân không - 2BE3 - EVP - Vacuum pump - Molecular pump
High pressure molecular pump.
Hãng cung cấp : EVP
Model : 2BE3
Chất lượng : Bảo hành 18 tháng
 Catalog Video

Vacuum pump -Liquid Ring Vacuum Pump
2BE3 series water ring vacuum pump and compressor
2BE3 series water ring vacuum pumps are the products with high efficiency and energy saving, which are manufactured by our company combining with the advanced technology of the imported products. They are not only can save energy, but also suitable for long-term use and operation.Running in the rough vacuum condition, water ring pump working conditions are often extremely harsh. 2BE3 series products are designed for suction various gases. They can be widely used in coal mine, electric factory, petrifaction and chemical industry, food processing and so on.2BE3 can be used with various actuating devices, such as belt, gear box,synchrony motor, variable speed drives etc. In addition, in order to save space, more than two or at most four sets of the 2BE3 series pumps can be driven by one motor simultaneously. When set a middle wall in the casing, the left and right parts of 2BE3 can run under different vacuum respectively ,if the pressure tolerance between the two sides is lower than 80kP,one pump can completely work like two .This feature further enhances the operational flexibility of 2BE3 vacuum pump
Main features:

1. The gap, corosion status, fouling situation can be easily observed by the big inspection port on both sides of the pump cover.
2, 2BE3 vacuum pump set the suction and discharge flanges both on the top and sides with the same diameter, so on-site installation is more flexible and convenient.
3. All bearings adopt the imported products in order to ensure precise orientation of impeller and high stability during the running.
4. The material of the impeller is welded with nodular iron or steel to ensure the high stability and increase the lifetime of the pump greatly during any hard conditions.
5. The pulley (when the pump is driven by the belt) adopts standard high precise taper bushing pulley to keep the reliable running and increase its lifetime, also it is easy to dismantle.
6. The pump body is made of steel or stainless steel plates to increase the lifetime of the pump
7. The shaft sleeve as the most easily damaged part, our shaft sleeve is made of stainless steel to increase the lifetime of the pump five times than normal material.
8. Special separator built-on the pump can save the space and reduce the noise efficiently.
9. All the castings by the resin sands with great quality, no puttying. Keep the heat dissipation is the best.
10. The mechanical seals (optional) adopt the imported parts to fully ensure the pump in the long-running process without leakage.

Model

 Ultimate vacuum hPa

Rotary speed (r/min)

Pumping Speed(m3/min)

Motor  power
r (kW)

2BE3 400

160

300

68

75

323

80

90

367

85

110

393

92

110

449

110

132

2BE3 420

160

300

90

110

330

110

132

360

120

132

390

126

160

420

134

185

2BE3 500

160

242

125

130

266

145

185

294

165

200

336

190

250

372

210

280

2BE3 520

160

236

150

185

266

165

220

294

205

250

336

235

280

336

250

315

2BE3 600

160

200

180

185

236

210

250

266

240

280

294

260

315

336

285

350

2BE3 620

160

200

220

220

236

255

280

266

290

350

294

320

400

336

360

450

2BE3 670

160

170

305

315

200

370

450

236

440

560

266

500

630

294

550

800



Model

Transmission type

Motor voltage
 (V)

Weight kg

Inlet Diam
 (mm)

Outlet Diam
 (mm)

2BE3 400

Belt

380

4960

300

300

Gear box or belt

380

5060

380

5295

380

5400

380

5540

2BE3 420

Gear box or belt

380

5740

300

300

380

5870

380

5920

380

6195

380

6335

2BE3 500

Gear box

380

8715

350

350

380

9070

380

9075

6KV

11320

6KV

11570

2BE3 520

Gear box

380

9730

350

350

6KV

11980

380

11980

380

12150

380

12615

2BE3 600

Gear box

380



400

400

6KV



6KV



6KV



6KV



2BE3 620

Gear box

6KV



400

400

6KV



6KV



6KV



6KV



2BE3 670

Gear box

6KV



500

500

6KV



6KV



6KV



6KV
