Vacuum pump - Dry vacuum pump

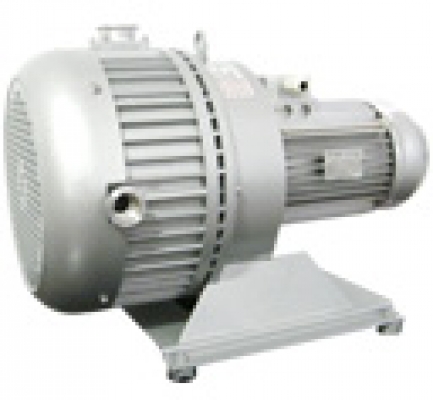

EVP series dry scroll vacuum pump
Based on the advanced technology of vacuum pumps abroad, this dry scroll vacuum pump is researched and developed by our experienced technicians. It is an environmental vacuum pump with reasonable price. This type will be the trends in the future.
Application:
Medical instruments,biologicals, pharmacy, food industry, medical packing, oil vapour recycle,film Preparation,semiconductor,micro-electronics, solar energy, etc.
Characteristics Description:
Environmental , no oil, no water, no pollution, with clean vacuum.
Easy to operate, convenient maintenance.
Low energy consumption.
Advanced in puming water vapor.
The things which it pumps can be recycled.
Compact construction, easy to install and move.
Air cooling.
Less vibration , low noise.
Wider working vacuum,can continue working from the ultimate vacuum to the high atmospheric pressure
Spare parts:sealing elements,shaft seal,bearing,lubricating grease
Technical Datas :

TYPE	Outlet Diam  (inch)	Weight (kg)	Noise  dB (A)	Dimension (cm)
EVP010	KF25/G3/4’	30	62	46X28X33
EVP020	KF25/G3/4’	33	65	48X28X33
EVP040	KF25/G3/4’	52	66	56X34X30
EVP080	KF25/G3/4’	68	68	68X38X43
