SP0501.09 : Đồng hồ lưu lượng siêu âm | Bù nhiệt độ | DMHF
Thông số chính :
Đồng hồ lưu lượng siêu âm | Cảm biến bù nhiệt độ | DMHF Heat Flow Meter Transit Time | DYNAMETERS

CTCP GIẢI PHÁP CÔNG NGHIỆP | Chế tạo thiết bị | Máy móc | Dây chuyền | Thiết bị sấy | Hệ thống pha trộn định lượng | Hệ thống điều khiển khí nén | Tích hợp từ các thiết bị công nghệ Bơm | Van | Cảm biến đo lường | Thiết bị khí nén SMC ( Nhật bản ) | Thiết bị điều khiển PLC của hãng Allen Bradley (Mỹ) SIEMENS ( Đức )
Hãng cung cấp : DYNAMETERS
Model : DMHF
Chất lượng : Bảo hành 18 tháng
 Catalog Video

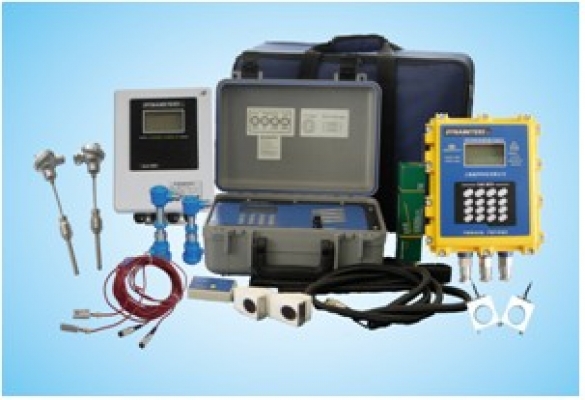

DMHF Heat Flow Meter

The Series DMHF adopt the MultiPulseTM Technology, Digital Signal Processing Technology and Error Correction Technology, which are the state-of-the-art non-invasive flow measurement technology, with a measuring system of very high accuracy, versatility, low cost of installation and ownership. The meter can calculate automatically caloric content of water under 0 ~200 temperatures, and can obtain instantaneous caloric value and totalized caloric value. The pipe range should be DN15-2500 (For series Insertion, the allowed pipe range is DN65-2500. For series Flanged, the allowed pipe range is DN20-2500.).

Features

1. For transmitter, users can select fixed types or Portable types.
2. For transducer, non-invasive Clamp-on and Insertion type are available.

3. For temperature sensor, utilize Pt1000 with 0.1%, clamp-on and the Insertion type are available.
4. Internally configured batch controller makes batch control convenient and accurate.
5. No moving parts, no pressure drop, no need of maintenance.
6. Easy and economical installation, hot-tapped installation.
7. Daily, monthly and yearly totalized flow: totalized flow for the last 64 days and months as well as for the last 5 years can be reviewed.

8. Optional SD card Data logger output, can memory Total heat flow, Heat flow rate, etc.

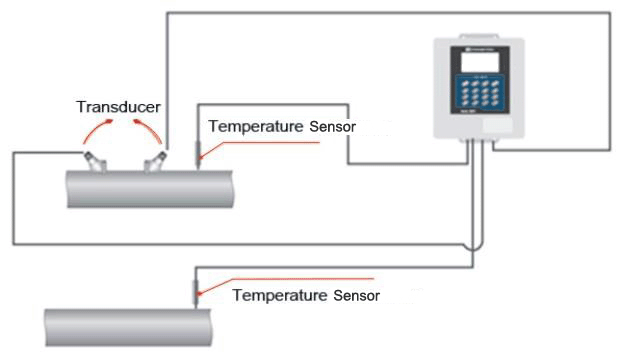

Heat flow= Flow*(Tin- Tout)
