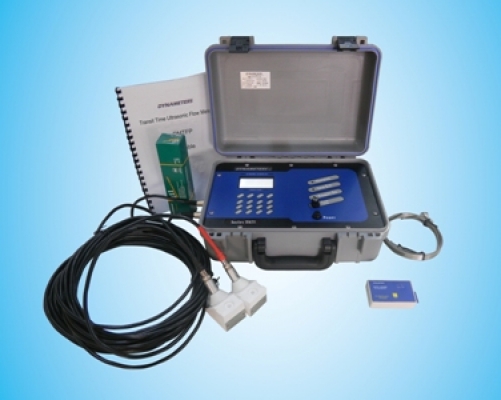

Series DMTFP Portable Transit Time Ultrasonic Flow Meters

Features:

1.        Advanced DSP and MultiPulse™ Technology.

2.        40-hour battery (rechargeable), back-lit 4 lines display all integrated into a rugged, watertight enclosure.

3.        Cost-effective and versatile, Providing SD card data logger function, can search the event of totalized flow, flow rate, velocity etc. The SD card capacity is based on users’ choice and the maximum can reach 8GB.

4.        Works reliably in both clean and somewhat dirty liquids.

5.        Lightweight and easily transportable in box.

6.        4-20 mA, OCT pulse (flow rate or total flow) output as standard output.

7.        Optional Heat flow BTU function, two temperature transmitters 4-20mA input for inlet and outlet temperature display and heat flow rate, total heat flow display.

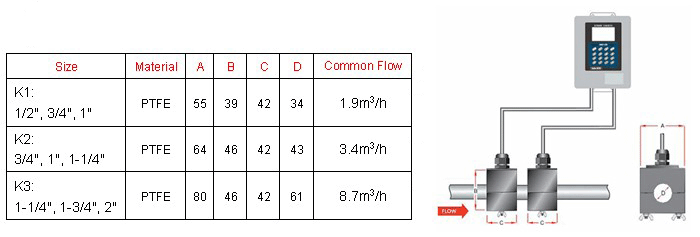

Note: K mode transducers utilize the Round-Clamp method, and the transducers' transmitting and receiving sides are connected with the pipe surface thoroughly to acquire enough coupling area, better reliability, stability, etc.
